The advantages of our generator | ||||||||

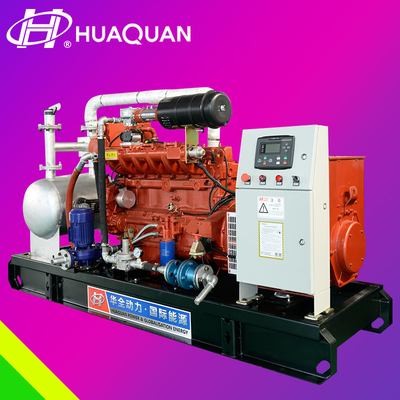

1、Huaquan 40kw gas generator set, external dimensions: 2150×750×1500 (L×W×H mm), unit weight: 950kg. | ||||||||
2、The Weifang series engine is selected, the spark plug ignition method is adopted, and the ECU is used for control, and the air intake method is natural suction. | ||||||||
3、This generator set uses a closed water circulation cooling system, and the radiator water tank installed is suitable for use at an environment of 40°C to 50°C to ensure the reliable operation of the generator set at normal ambient temperature. | ||||||||
4、The standard intelligent four protection control system can monitor various operating data of the unit in real time, and has multiple warning and alarm functions to ensure the normal operation of the generator set. | ||||||||
40KW Weifang Series Gas Generator Set Technical Specifications | ||||||
Technical parameters of generator set： | ||||||
Unit model： | HQ40GF | Steady state voltage adjustment rate (%)： | ≤± 1 | |||
Output power： | 40Kw | Voltage fluctuation rate (%)： | ≤ ± 0.5 | |||
Power factor： | COSΦ = 0.8 (lagging) | Transient voltage adjustment rate (%)： | + 20 ～ －15 | |||
Output voltage： | 400V / 230V | Voltage stabilization time (s)： | ≤1 | |||
Output current： | 72A | Steady state frequency adjustment rate (%)： | ≤ ± 1 | |||
Rated frequency： | 50Hz | Frequency fluctuation rate (%)： | ≤ ± 0.5 | |||
Rated speed： | 1500rpm | Transient frequency adjustment rate (%)： | + 10 ~ -7 | |||
Gas grade: | LNG/CNG | Frequency stabilization time (S)： | ≤3 | |||
Dimensions： | 2150×750×1500（L×W×H mm） | Gas consumption (100% load): | 0.6L/kW·h | |||
Weight： | 950kg | Acoustic noise (LP7m)： | ≤95dB（A） | |||
Technical parameters of gas engine: | ||||||
Brand/origin： | Weifang Gas Engine | Cooling method： | closed water circulation cooling | |||
model： | 6105D-NG | Ignition method: | Spark plug ignition | |||
Number of cylinders / Dare to mention structure： | 4 / L Type | control method: | ECU control | |||
Bore stroke： | 105 × 125 mm | Intake method： | inhale naturally | |||
Compression ratio： | 16.5：1 | Overload capacity： | 110% | |||
Start mode： | DC 12V Electric start | Speed： | 1500rpm | |||
Technical parameters of generator： | ||||||
Brand： | Huaquan brushless generator | Protection level： | IP22 | |||
Model： | HQF-40 | Wiring mode： | Three-phase four-wire, Y-connection | |||
Rated power： | 40kW | Adjustment method： | AVR (Automatic Voltage Regulator) | |||
Rated voltage： | 400V / 230V | Output frequency： | 50Hz | |||
Insulation class： | H class | Output factor： | COSΦ = 0.8 (lag) | |||
The standard configuration of the generator set is as follows: | ||||||
Ø EFI internal combustion engine (gas); | ||||||
Ø AC synchronous generator (single bearing); | ||||||
ØSuitable for ambient temperature 40 ℃ -50 ℃ radiator water tank, belt driven cooling fan, fan safety shield; | ||||||
Ø Power generation output air switch, standard control screen; | ||||||
Ø Unit steel common base (including: unit vibration damping rubber pad); | ||||||
Ø Dry air filter, fuel oil, lubricating oil filter, start motor, and equipped with self-charging generator; | ||||||
Ø Random information: original technical documents of gas engine and generator, generator set manual, test report, etc. | ||||||
1.What's your power range of Generators? | ||||||||
Answer: We can offer the range from 10kva~1000kva. | ||||||||
2.What's your delivery time? | ||||||||
Answer: Generally,we can delivery in 7 days after we get the deposit. | ||||||||
3.What are the payment methods for buying equipment? | ||||||||
Answer: 1、We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping. 2、We accept Alibaba credit guarantee payment. 3、We accept bank wire payment. | ||||||||
4.What's your warranty? | ||||||||
Answer: All our products we offer on year warranty. | ||||||||
5.What's your MOQ? | ||||||||
Answer:We accept the MOQ is 1 set. | ||||||||
