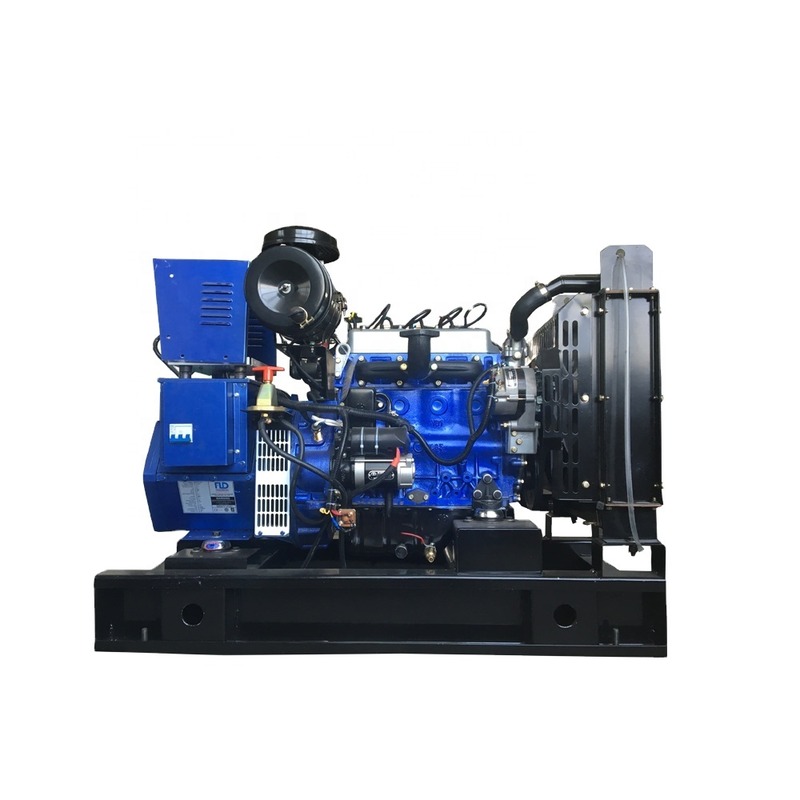

15kva natural gas generator YDNY-12

1 Set
MOQ
$5,550.00(1 - 1 Sets) $5,500.00(2 - 4 Sets) $5,000.00(>=5 Sets)
価格
15kva natural gas generator YDNY-12
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1YEARS, One Year Or 1500 Running Hours
証明: CE
Model Number: YDNY-12
Rated Voltage: 400/380/220/230V
Rated Current: 21.6A
Speed: 1500/1800rpm
Frequency: 50/60HZ
Product name: 15kva natural gas generator
Fuel: Natural gas
Certificate: CE ISO9001 ISO14001 ISO18001
Alternator: 100% copper wire brushless
E-Throttle Brand: with BOSCH
Gas Mixer Brand: IMPCO
Regulator Brand: MADAS
Spark Plug Brand: TORCH
Water Temperature brand: with BOSCH
基本情報
証明: CE, CE ISO9001 ISO14001 ISO18001
Model Number: YDNY-12
お支払配送条件
Packaging Details: For open type, packing with plywood case; For silent type, packing with bubble and stretch film for 15kva natural gas generator
製品の説明
Product Description
15kva Natural gas generator



Generator
Genset Model
YDNY-12
Rated Power (kW/kVA)
12Kw/15Kva
Rated Current (A)
21.6
Dimension (mm)
1450*700*1100
Gross Weight (kg)
510








Natural gas engine
Brand
YTO YANGDONG
Model
YD4M1D
Configuration
Water-cooled, 4-stroke, 4 cylinder in-line
Rated Power (kW/kVA)
15Kw/18.75Kva
Rated Speed (rpm)
1500
Cylinder No.
4
Bore*Stroke (mm)
80*90
Oil Consumption (g/kw.h)
1
Gas Consumption (Nm3/h)
3.6
Starting method
24V DC electric





Alternator
Brand
FARRAND
Model
FLD-12
Rated Power (kW/kVA)
12/15
Efficiency
92.50%
Voltage Regulation
≦±1
Voltage Regulation
Brushles, Self Excitation
Insulation Class
H





Control System
Brand
SMARTGEN
Model
HGM6110
Working Voltage
DC8.0V to DC35.0V, continuous
Overall Dimensions (mm)
197*152*47
Panel Cutout (mm)
186*141
Working Condition
Temperature: (-25~70)ºC; Humidity: (20~90)%
Weight
0.56kg

Requirments for natural gas

1.Methane should be at least 85%

2.The natural gas temperature should be between 0-60 ℃
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Detailed Images



Control System

Name: Electronic throttle

Brand: BOSCH

Original: Germany

Control the supply of gas flow




Mixed system

Name: MIXER
Brand: IMPCO
Original: USA
Mix gas and air for combustion



Regulator System

Name: Regulator
Brand: MADAS
Original: Italian
Regulate the pressure of gas supply



Central control system

Name: ECU
Brand: YDN
Original: China
Central control system of gas generator, computer of gas generator, ignition control system, speed control system, hybrid system and so on.
